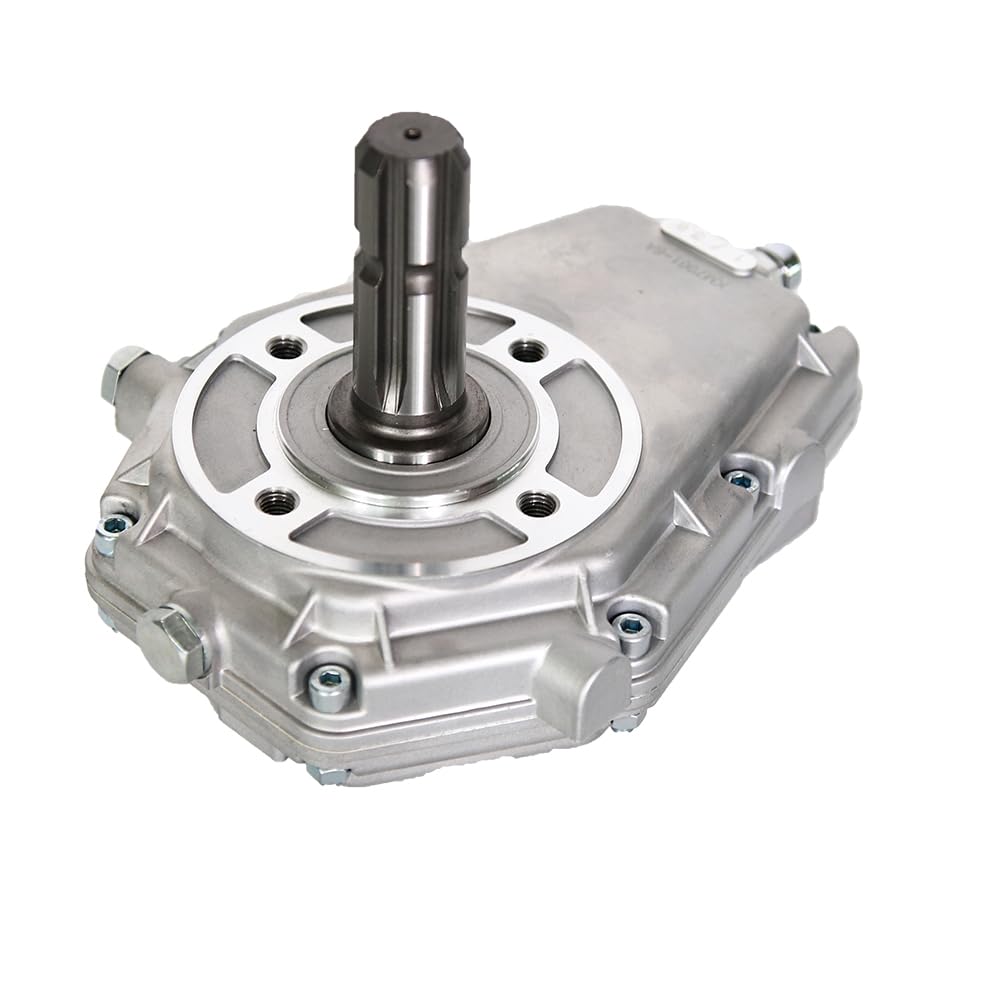

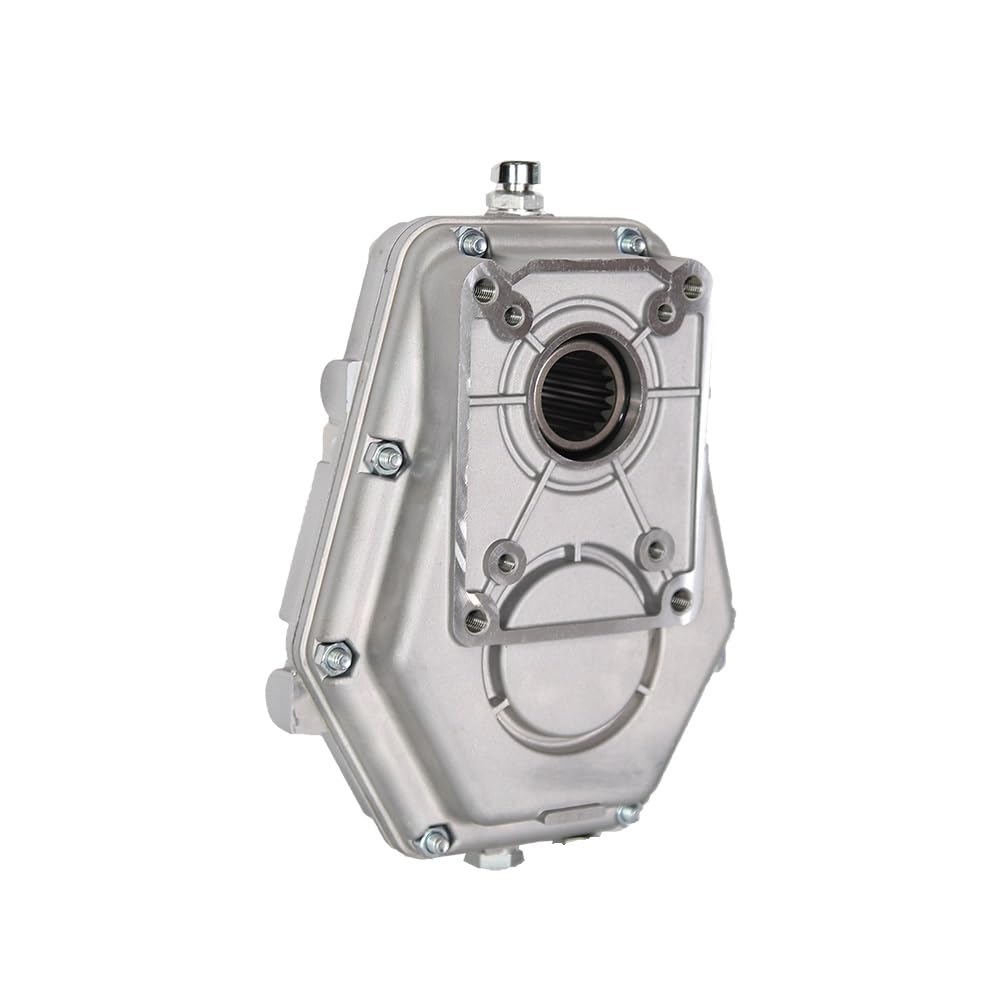

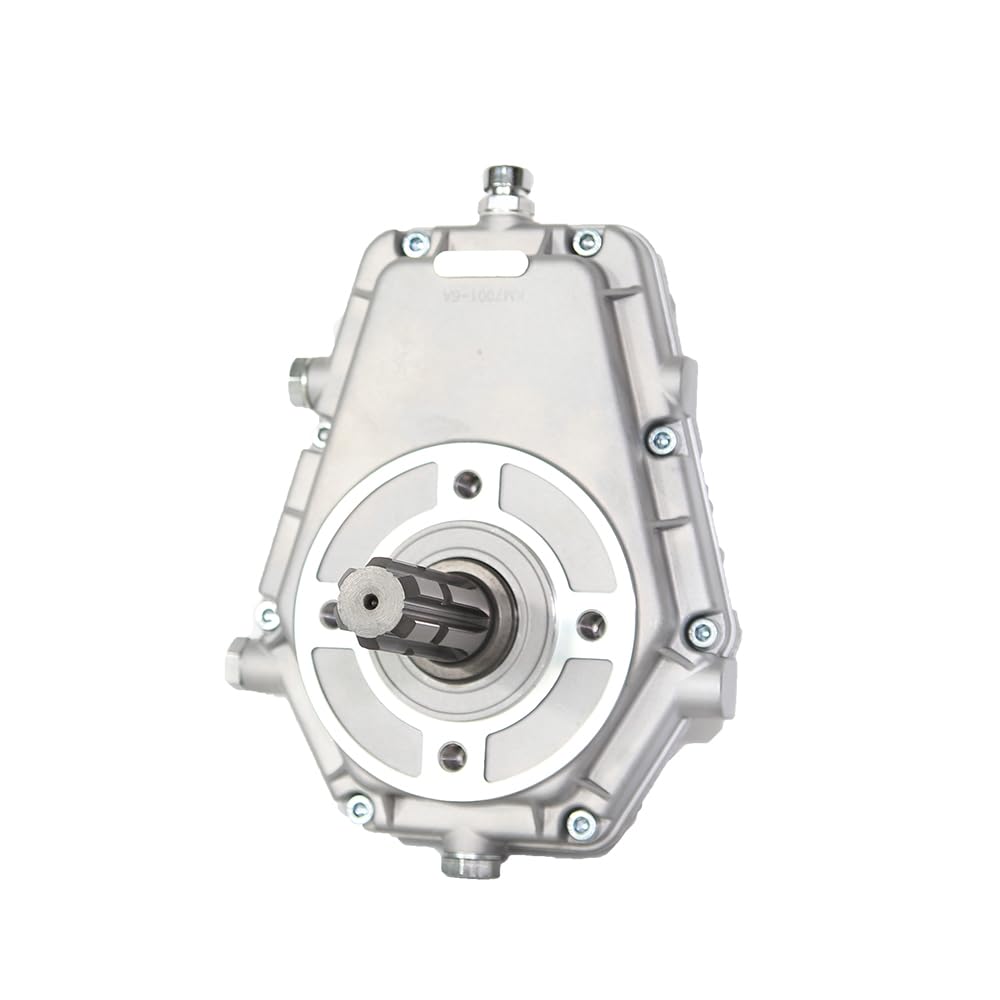

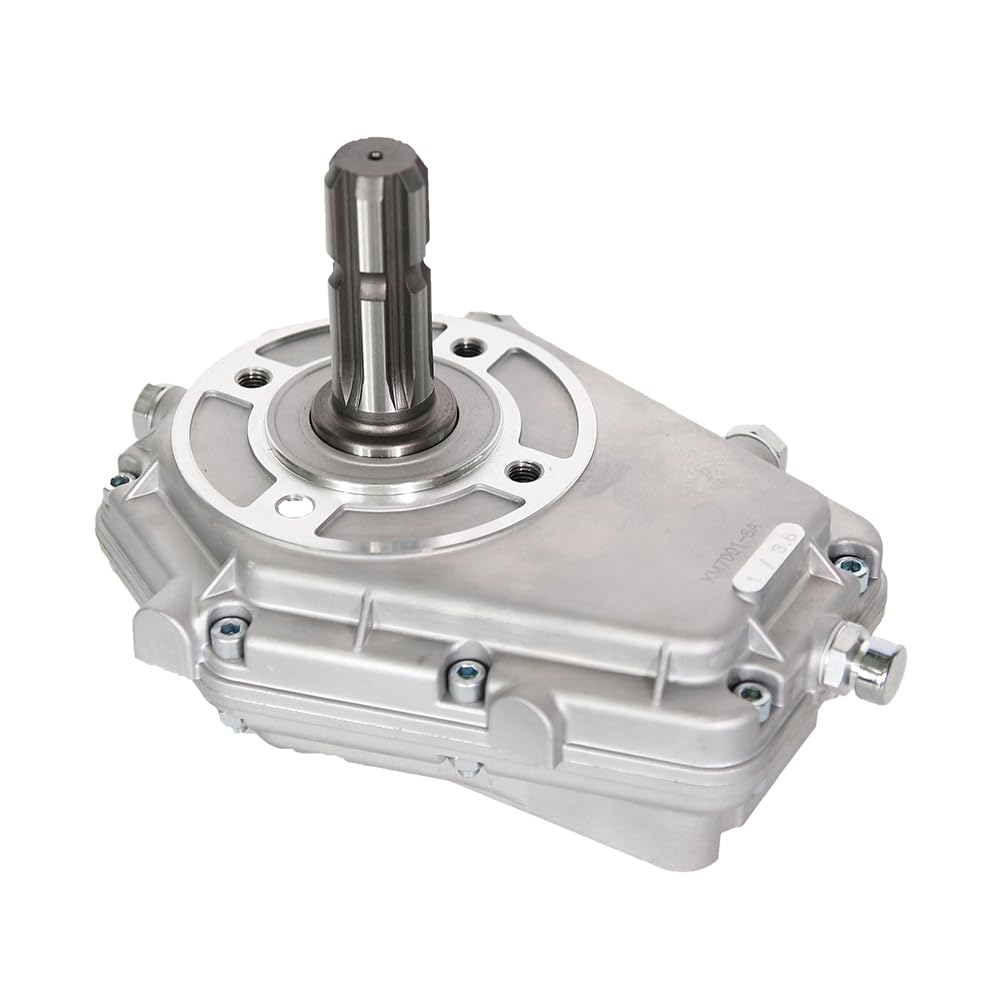

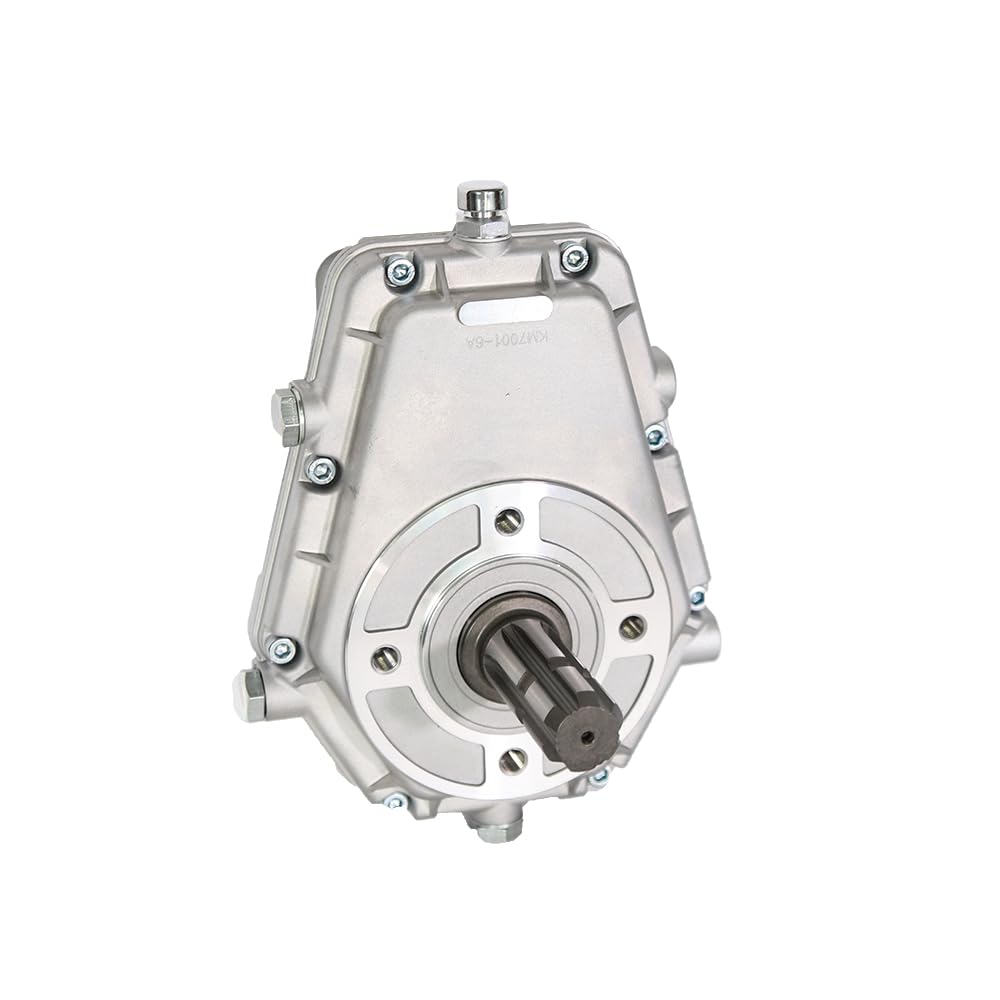

Warranty:1 Applicable Industries:Farms Weight (KG):9 Gearing Arrangement:Spur Output Torque:115~260NM Input Speed:540R/MIN Output Speed:810~2052r/min Product name:Male1"3/8 pto shaft speed up gearbox KM7001 for log splitter Type:KM7001 Application:log splitter Material:Aluminium function:speed increaser Certification:CE Ratio:1:3.8 Packing:Carton Products Description Male1"3/8 pto shaft speed up gearbox KM7001 for log splitter The Gearboxes are designed for connecting gear pumps to farm tractor power take offs (PTO). Output speed of power take offs is 540rpm which can be compared with the proper running speeds of hydraulic pumps. Different input running speeds can also be suitable,provided that the gearbox output speed does not exceed 3000 rpm. Gears Made in Steel UNI 18 PCR M03.Stub teeth guarantee very high resistance and run very quietly. Shafts Made in steel UNI 16 CRN4.They are coupled with gears via splined parts and are thus more suitable to stand the torques stated in the catalogue. Pump assembly Pump assembly requires a half-coupling and a fitting flange according to specific requirements,when ordering please specify flange and pump shaft type.Contact our technical staff when installing special pumps. 1 Model KM7001 4 Power 20Kw 2 Input torque 380~437Nm 5 Input speed 540r/min 3 Output torque 115~260Nm 6 Output speed 810~2052r/min
