3/4" Ultraflex High Pressure Hose Assembly - 240 Inch Length, 3/4" Male NPT x 3/4" Male NPT Swivel Fittings (4,350 PSI) - Ideal for Hydraulic Systems, Industrial Machinery, and Heavy-Duty Equipment

Save 45%

Sku: 20711000 in stock

$81.03

$147.33

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

10 people viewing this product right now!

Guranteed safe checkout

Description

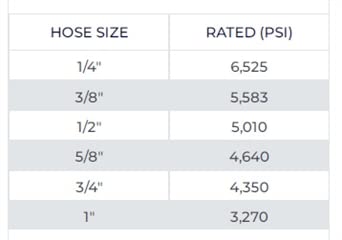

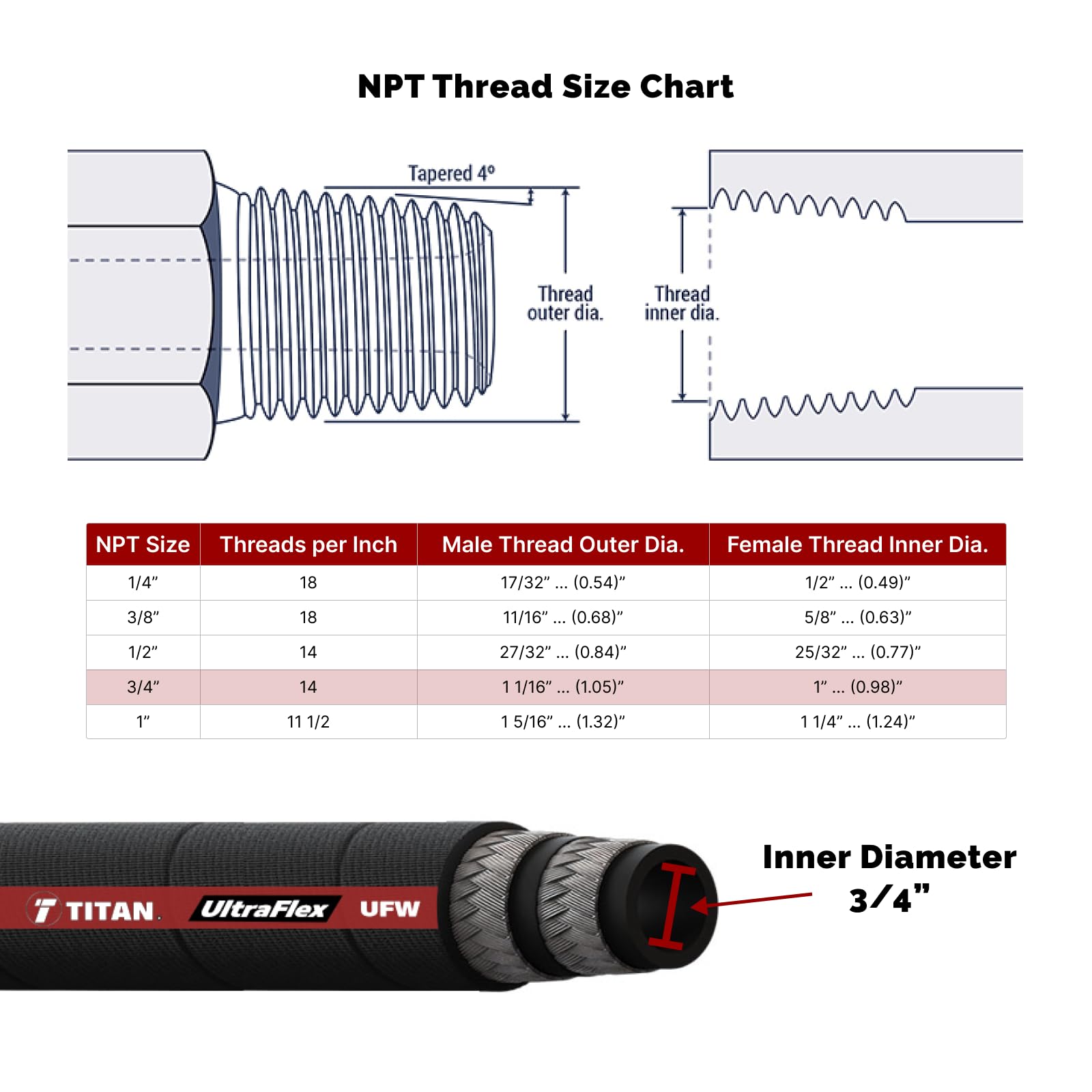

3/4" Ultraflex Hose Assembly with Male NPT The 2 Wire Steel Braid hydraulic hose assembly with male NPT to male NPT swivel hose ends is designed for reliable and consistent operation in hydraulic systems. The inner core, fortified with a two-wire steel braid, assures enduring functionality and strength. An MSHA-certified outer cover envelops the assembly, providing substantial abrasion resistance alongside protection from ozone and varied weather conditions. This comprehensive defense ensures the long-lasting integrity of the assembly in diverse operational environments. Equipped with male NPT to male NPT swivel hose ends, this assembly ensures seamless and secure connections, enhancing the efficiency and reliability of hydraulic systems across numerous applications. Inner Core: 2 Wire Steel Braid Hose Inner Diameter: 3/4 inch Outer Cover: MSHA Certified, 10x Abrasion Resistant Synthetic Rubber, Ozone and weather resistant synthetic rubber Temp Operating Range: -40F/-40C to 212F/100C (+248F/120C max.) Previous page Next page 1 Hose Specifications 2 Hose Construction 3 NPT Thread Size Chart What types of custom hose assemblies does Titan provide? We sell hydraulic hose assemblies with end configurations consisting of: JICxJIC, JICxNPT, NPTxNPT and NPTxNPTX (swivel). What length of hose assembly can I order? We sell custom assemblies in lengths from 12" all the way up to 300". What diameter hoses can I order? 1/4", 3/8", 1/2", 3/4" and 1" Hose Assembly Options From Titan NPT x NPTX Hose Assembly Buying Options JIC x JIC Hose Assembly Buying Options JIC x NPT Hose Assembly Buying Options NPT x NPT Hose Assembly Buying Options Customer Reviews 5.0 out of 5 stars 4 5.0 out of 5 stars 7 — 5.0 out of 5 stars 3 Hose Type Titan Ultra Flex Titan Ultra Flex Titan Ultra Flex Titan Ultra Flex Inner Core Construction 2 Wire Steel Braid 2 Wire Steel Braid 2 Wire Steel Braid 2 Wire Steel Braid MSHA Certified Yes Yes Yes Yes Temperature Range -40° to +212°F -40° to +212°F -40° to +212°F -40° to +212°F Application Petroleum base hydraulic oils Petroleum base hydraulic oils Petroleum base hydraulic oils Petroleum base hydraulic oils

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

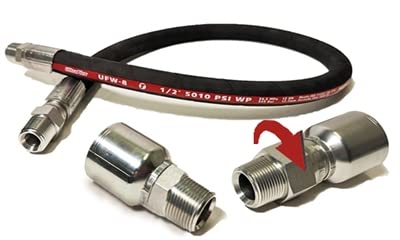

FA-UFW12-NPT-NPTX | Assembly 3/4" Ultraflex Hose with 3/4" Male NPT x 3/4" Male NPT swivel.

One hose assembly crimped on both ends One Male NPT and one Male NPT swivel.

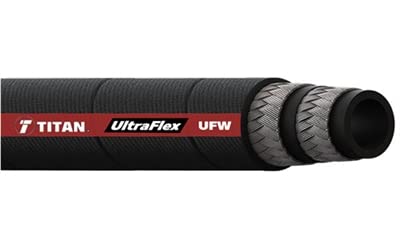

3/4” NPTX HOSE ASSEMBLY (EXCEEDS SAE R2, R16, R17) made with Titan Ultraflex - 2SNK high abrasion cover braided hydraulic hose.

Inner Core 2 Wire Steel Braid Outer Cover MSHA Certified, 10x Abrasion Resistant Synthetic Rubber Temp Operating Range -40F/-40C to 212F/100C (+248F/120C max.).

Working Pressure 4,350 psi.
